Cinquè eix manipulador per injecció
BRTM09IDS5PC/FC
Producte descripció:

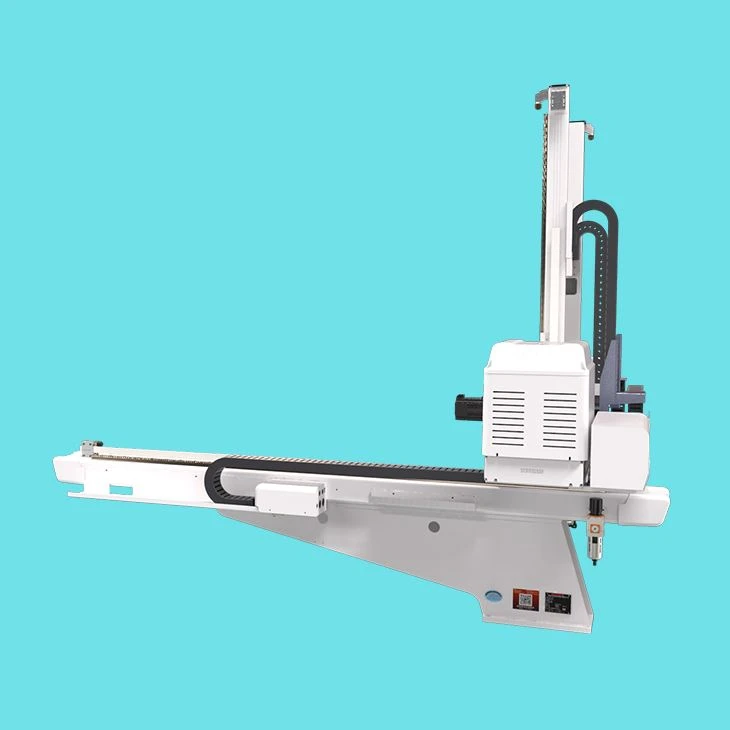

Cinc eix manipulador és utilitzat for injecció màquines de 160T–320T for take out items. The up and down arm is made up of just one segment. It's upper and lower parts, drawing portion, screwing out, and screwing in are all driven by air pressure, who has a high speed and efficiency. After installing this robot, productivity will increase by 10–30%, defective product rate will will decrease, operator safety will be ensured, manpower will be reduced, and output will be precisely controlled to reduce waste.
Errors i solucions voluntat succeir en five eix manipulador per injecció:
Error Inform 1 : The wrong number is 01: DaisInAndDaisOutLmtOn
Raons : Gira en limita senyal i rota fora límit senyal són ambdós on.
Solució : 1. Check rotate in/out limit signal. 2. Check connections in IO board.
Error Inform 2 : The wrong number is 02 UpLmtOn
Raons : After arm descends, the up-limit signal is still on.
Solució : Has arm descended? If yes, 1. Check up-limit signal. If no, 2. Check arm descend output signal. 3. Check air pressure.
Error Inform 3: The wrong number is 03 UpLmtOff
Raons : After arm rises, the up-limit signal is still off.
Solució : Has arm raised? If yes, 1. Check up-limit signal. If no, 2. Check arm descend output signal. 3. Check air pressure.
